- Modell:
- Hitch Climber - Triple Attachment Pulley
- Marke:
- DMM
- Familie:
- Seilrollen
- Ordnung:
- PSA gegen Absturz
- Art.-Nr. d. Marke:
- PUL100
- Normen:
- DIN EN 12278, NFPA 1983, DIN EN 795 B
- Lebensdauer:
-
Siehe Tabelle „Modellvarianten“.
Max. Lebensdauer (inkl. Lagerzeit) ab Herstellung gerechnet. Beachten Sie dazu auch die Herstellerinfos (DMM) der jeweiligen Gebrauchsanleitung.
- Nutzungsdauer:
-
Siehe Tabelle „Modellvarianten“.
Max. mögliche Nutzungsdauer ab Inbetriebnahme gerechnet. Auch hier ist zusätzlich die Gebrauchsanleitung von DMM zu beachten.
Produktbeschreibung der Marke

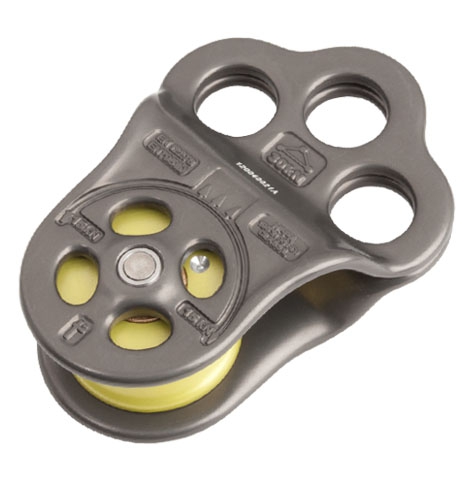

The DMM Triple Attachment Pulley combines the high efficiency of our pulleys with a small three hole rigging plate to give an extremely versatile piece of equipment. It can obviously be used as a standard pulley, but the additional holes allow it to be guided or controlled without adding any complication into the system. All the edges are rope and textile friendly allowing direct attachment that minimises bulk and maximises versatility. Pre-lubricated Oilite bushing give minimal efficiency losses and minimal maintenance requirements. An integral part of the DMM/Teufelberger ‘Hitch Climber’ set up developed in conjunction with Treemagineers. Available in red (Cat no: PUL100RD) or titanium (Cat no: PUL100BLT)
- Certified to EN12278:2007 (Pulleys) , EN795(B):2012 (Anchor devices) and NFPA 1983 (2012 Edition) Class T rating
- Triple attachment points for special applications
- Hot forged aluminium side plates provide strength and durability
- Heat treated stainless steel spindles for high strength and corrosion resistance
- Pre lubricated Oilite bushing for ultra smooth operation
- Riveted and tamperproof assembly
- Recommended for arborist and rescue applications
- Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
- Available in Black, Olive and Sand in our Tactical range
- Individually marked for traceability
Modellvarianten
| Art.-Nr. d. Marke | Farbe | LD | ND |
|---|---|---|---|

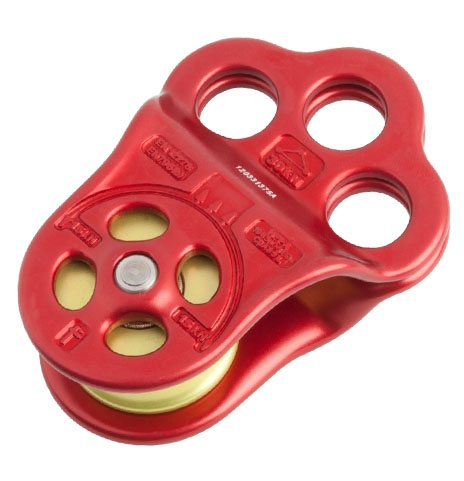

| PUL100RD | rot | — | — |
| PUL100BLT | titan | — | — |
