- Modell:

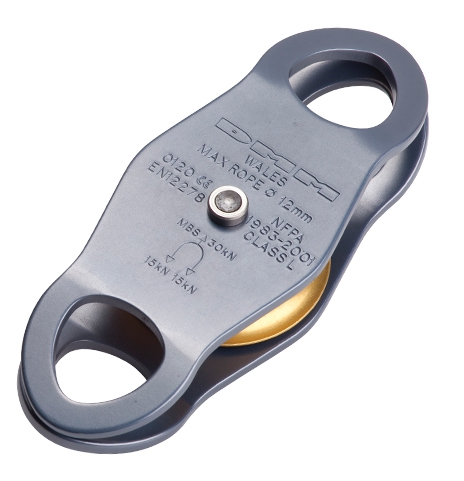

- Double Attachment Single Sheave Pulley
- Marke:
- DMM
- Familie:
- Seilrollen
- Ordnung:
- PSA gegen Absturz
- Art.-Nr. d. Marke:
- PUL220
- Normen:
- DIN EN 12278, NFPA 1983, DIN EN 795 B
- Lebensdauer:
- —
Max. Lebensdauer (inkl. Lagerzeit) ab Herstellung gerechnet. Beachten Sie dazu auch die Herstellerinfos (DMM) der jeweiligen Gebrauchsanleitung.
- Nutzungsdauer:
- bis zum Ende der Lebensdauer
Max. mögliche Nutzungsdauer ab Inbetriebnahme gerechnet. Auch hier ist zusätzlich die Gebrauchsanleitung von DMM zu beachten.
Produktbeschreibung der Marke
A double attachment version of our single attachment swing cheek pulley that helps tip the scales in your favour when used as a part of a complex system or as a re-direct. A combination of aluminium side plates and sheave with stainless steel spindles provide strength and durability with minimal weight penalty and increased corrosion resistance. Large size sheave on a pre-lubricated Oilite bearing gives an ultra smooth, efficient, rope friendly working area.
- Conforms to EN12278:2007 (Pulleys), EN795(B):2012 (Anchor devices) and NFPA 1983 (2012 Edition) Class T rating
- 4mm aluminium side plates provide strength and durability
- Heat treated stainless steel spindles for high strength and corrosion resistance
- Pre lubricated Oilite bearings for ultra smooth operation
- Riveted and tamperproof assembly
- Anodised to BS EN ISO 7599:2010 AA10 Sealed for corrosion protection
- Recommended for general pulley applications
- Individually marked for traceability
