- Modell:
- Reactor 3 / W43 - Type Y
- Marke:
- Singing Rock
- Familie:
- Schlingen, Verbindungsmittel und Falldämpfer
- Ordnung:
- PSA gegen Absturz
- Normen:
- DIN EN 355
Produktbeschreibung der Marke
REACTOR 3 / W43*

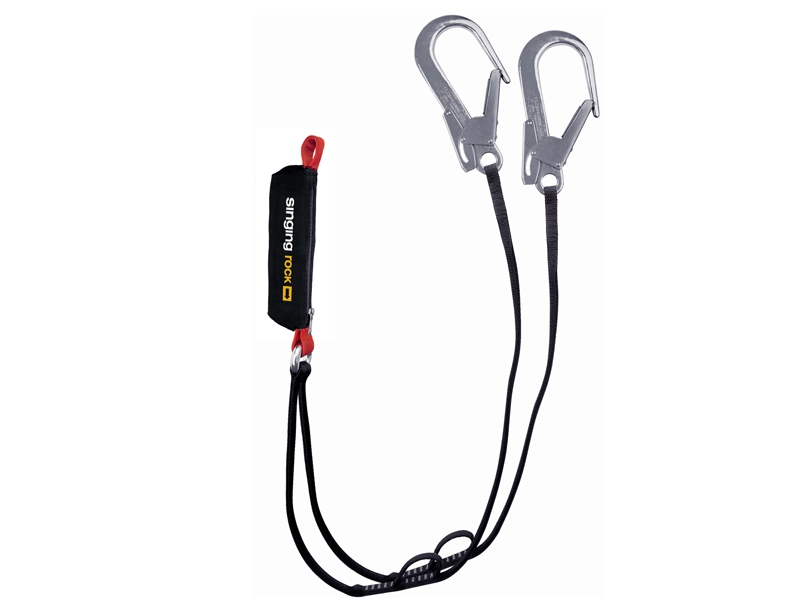

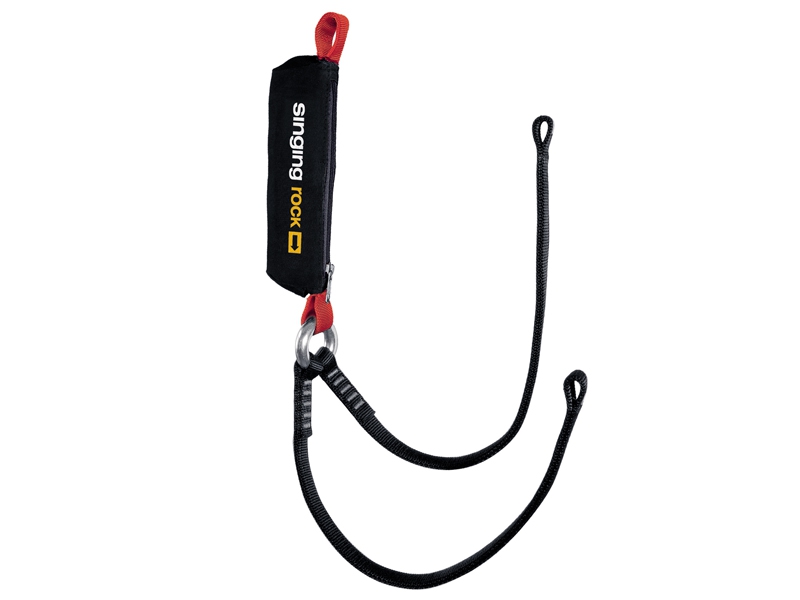

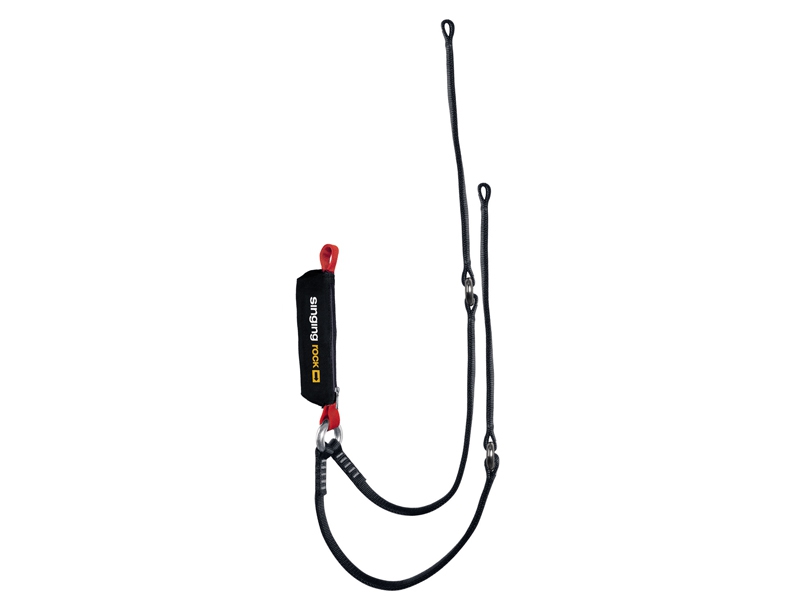

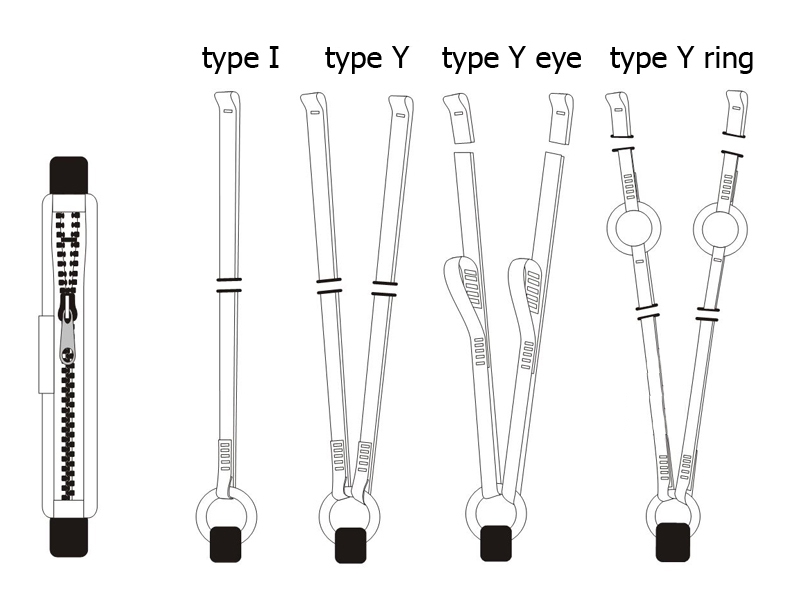

Shock absorber with a lanyard I, Y, Y with eyes or Y with rings
- parts exposed to abrasion covered with a tubular webbing
- shock absorber covered with a textile sheath
- shock absorber can be easily taken out and dried
- methodical and identification label is placed inside the textile cover
- light alloy ring or textile eye enables to shorten a webbing in half
- different webbing lengths are produced on customer's demand
(maximum length including connectors and shock absorber cannot extend 2 m) - carabiners can be fixed by a plastic holder which also protects webbing against wearing trough
- possibility to stitch-in a connector (EN 362)
- length of completely ripped out fall absorber 140 cm
Strength: min. 15 kN
Modellvarianten
| Artikel-Nr. | Version | Länge | Karabiner Gurtrichtung #1 | LD | ND |
|---|---|---|---|---|---|
| W43 | — | — | — | 15 | 10 |
| W4340W085 | — | 0,85 m | — | 15 | 10 |
| W4341W085 | — | 0,85 m | K370 | 15 | 10 |
| W4342W085 | — | 0,85 m | K353 | 15 | 10 |
| W4343W085 | — | 0,85 m | K355 | 15 | 10 |
| W4344W085 | — | 0,85 m | K369 | 15 | 10 |
| W4340W155 | — | 1,55 m | — | 15 | 10 |
| W4341W155 | — | 1,55 m | K370 | 15 | 10 |
| W4342W155 | — | 1,55 m | K353 | 15 | 10 |
| W4343W155 | — | 1,55 m | K355 | 15 | 10 |
| W4353W155 | eye | 1,55 m | K355 | 15 | 10 |
| W4370W155 | ring | 1,55 m | — | 15 | 10 |
| W4371W155 | ring | 1,55 m | K370 | 15 | 10 |
| W4372W155 | ring | 1,55 m | K353 | 15 | 10 |
